Compact Radial Engines MZ34


Power:30 hp / 6250 rpm
Torque:35 Nm / 4500 rpm
Displacement:313 cc
Weight:42 lbs (19 kg)
Cycles:Two cycle
Cylinders configuration:1 radial
Propeller drive:Belt redrive

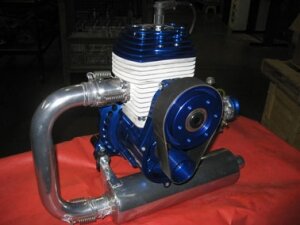

Compact Radial Engines MZ34

MZ34`s description

MZ 34 is our bestseller. It is designed for powered paragliding applications (PPG), single or two place PPG trikes, single place HG trikes and light single place ultralight planes. Lots of high end torque gives this engine outstanding flying capabilities. Built in decompression channel guarantees easy pull start. Tuned exhaust ensures maximum power and quiet operation. Nikasil coated cylinder provides for reliability and longevity of the motor. Engine comes equipped with recoil or electric starter, exhaust system and redrive.

Description from the website on 2014-05-11.

Another engines from Compact Radial Engines:


Weight:31 lbs (14 kg)
Power:18 hp
Displacement:98 cc
Compact Radial Engines MZ100


Weight:88 lbs (40 kg)
Power:60 hp
Displacement:626 cc
Compact Radial Engines MZ202


Weight:1184 lbs (537 kg)
Power:85 hp
Displacement:939 cc
Compact Radial Engines MZ301

Comparable engines:


Weight:40 lbs (18.7 kg)
Power:36 hp
Torque:35 Nm
Displacement:294 cc
Aixro XF40


Weight:33 lbs (15.2 kg)
Power:21 hp
Displacement:195 cc
Bailey Aviation V5


Weight:35 lbs (16 kg)
Power:21 hp
Displacement:173 cc
Cors-Air M25Y

F33 A/AS

Weight:29 lbs (13 kg)
Power:25 hp
Torque:31 Nm
Displacement:313 cc
Hirth F33 A/AS

Mini 3

Weight:49 lbs (22 kg)
Power:34 hp
Torque:40 Nm
Displacement:270 cc
Simonini Racing Mini 3
