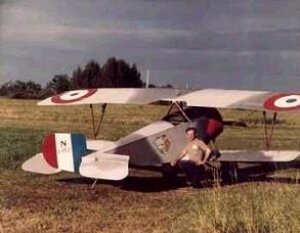

Nieuport 11

Performance & specifications:

Construction material: Aluminium
Number of seats: 1
Wing area: 114 sqft
Stall speed: 27 mph (43 kph)
Cruise speed: 80 mph (129 kph)
Never exceeded speed: 95 mph (153 kph)
Empty weight: 254 lbs (115 kg)
Gross weight: 550 lbs (249 kg)
Wingspan: 21.6 feet
Lenght: feet
Height: 6.6 feet
Fuel capacity: 5gal.
Fuel type: gasoline
Circa Reproductions Nieuport 11

Nieuport 11`s description

Designed and prototyped in the spring of 1984. The 11 can be built with lightweight TUFF wheels and a Rotax 447 in the US Ultralight category. As a registered homebuilt, (or UL in Canada) it can be built in a range of variants including the Ni 17/24/27 and Siemens Shuckert D1. * Recommended powerplants include the Rotax 503, 447, or VW. Construction: The structure is 6061 tube with pull riveted gussets and bolts. Wings and fuselage are fabric covered. Plans are designed for the first time builder with basic tools.

U.S. FAA registrations

Model year No. of seats City State
2010 1 MCLOUD OK
2009 1 GERALDINE AL
2008 1 SUSSEX NJ
2008 1 CRESWELL OR
2003 1 CORVALLIS OR
2003 1 WEATHERFORD TX
2003 1 BELLINGHAM WA
2002 1 SIOUX CITY IA
2002 1 BELLINGHAM WA
2002 1 BELLINGHAM WA
2001 1 GALESBURG IL
1999 1 CATO NY
1999 1 WATERFORD PA
1996 1 BATES CITY MO
1995 1 AUBURN IN
1992 1 SANFORD FL
1988 1 KANSAS CITY MO
1986 1 PARKVILLE MO
1985 1 KANSAS CITY MO
14x registration with missing year and state
Total registered: 33

Nieuport 11 accident statistics by event year

NTSB Identification Accident Number Event Date Location Injury Severity
20110604X70559 WPR11CA247 2011-06-04 Bellingham, WA Non-Fatal
20090917X13938 WPR09LA454 2009-09-18 Pahrump, NV Non-Fatal
20050816X01253 NYC05LA133 2005-08-13 Rhinebeck, NY Non-Fatal
20030221X00245 SEA03LA039 2003-02-13 Independence, OR Non-Fatal
20020614X00891 SEA02FA097 2002-06-09 Independence, OR Non-Fatal
20001212X21869 SEA00LA165 2000-08-14 WHITE PINE, MT Non-Fatal
20001211X10257 CHI98LA211 1998-06-20 GARDNER, KS Non-Fatal
20001211X10257 CHI98LA211 1998-06-20 GARDNER, KS Non-Fatal

Manufactured / designed by the same producer / designer:

Nieuport 12

EW: 575 lbs (261 kg)
MTOW: 1070 lbs (485 kg)
Vs0: 33 mph (53 kph)
Vc: 75 mph (121 kph)
Circa Reproductions Nieuport 12

Circa Reproductions Miranda

EW: 280 lbs (127 kg)
MTOW: 600 lbs (272 kg)
Vs0: 30 mph (48 kph)
Vc: 81 mph (130 kph)
Circa Reproductions Miranda
