Hirth F36

Specifications:

Power: 15 hp / 6000 rpm
Torque: 18 Nm / 5500 rpm
Displacement: 208 cc
Weight: 20 lbs (9.4 kg)
Cycles: Two cycle
Cylinders configuration: 1 radial
Fuel: Gasoline
Cooling: Air
Propeller drive: Belt redrive

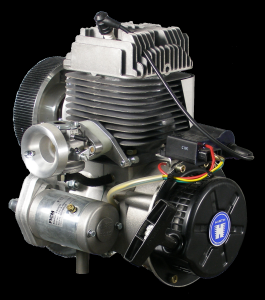

Hirth F36

F36`s description

The F36 is an air cooled, piston controlled 1-cylinder-2-stroke engine with diaphragm carburetor and Nikasil coated cylinder.
It has one of the highest power to weight ratio available on the 15 HP engine market.
Ideally suited for powered parachutes and all applications where weight is an issue.

Description from the website http://www.hirth-motoren.de/en/engine-f36.html on 2014-05-18.
