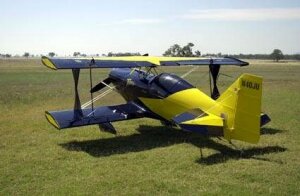

Ultimate 10 Dash 200
Performance & specifications:
| Number of seats: | 1 |
|---|---|
| Wing area: | 120 sqft |
| Stall speed: | 61 mph (98 kph) |
| Cruise speed: | 190 mph (306 kph) |
| Empty weight: | 976 lbs (443 kg) |
| Gross weight: | 1380 lbs (626 kg) |
| Climb rate: | 2000 fpm |
| Take-off run: | 450 feet |
| Landing run: | 500 feet |
| Wingspan: | 16 feet |
| Lenght: | feet |
| Engine: | 200 hp |
| Fuel capacity: | 23gal. |
| Fuel type: | gasoline |
10 Dash 200`s description
The 10 Dash Model 100 was designed as sport biplane that could be either bought assembled or for amateur construction from either plans or a kit. The first prototype 10 Dash 100 first flew on 6 October 1985. It is designed to have either a 100 hp (75 kW) or 180 hp (134 kW) engine fitted for example a 100 hp (75 kW) Continental O-200 engine. It is a braced biplane with wooden wings and welded steel tube fuselage and a fixed conventional landing gear with a tailwheel and a single open cockpit. An aerobatic variant, the 10 Dash 200, is powered by a 180-200 hp engine.
Manufactured / designed by the same producer / designer:
Ultimate 10 Dash 300
| EW: | 1150 lbs (522 kg) |
| MTOW: | 1650 lbs (748 kg) |
| Vs0: | 61 mph (98 kph) |
| Vc: | 219 mph (352 kph) |
